Overview
Industrial ethylene oxide sterilisers are designed for large scale, palletised sterilisation in manufacturing and high volume production environments.
Operating at low temperatures, these systems provide controlled, repeatable processing of heat sensitive and complex medical products while maintaining high standards of safety, automation and regulatory compliance.
With integated preconditioning, gas exposure and in chamber aeration, industrial ETO systems deliver efficient sterile output for facilities requiring reliable, high capacity performance.
High Capacity Pallet Processing
Integrated Preconditioning & Aeration
Advanced Safety Systems
Designed for Medical Manufacturing

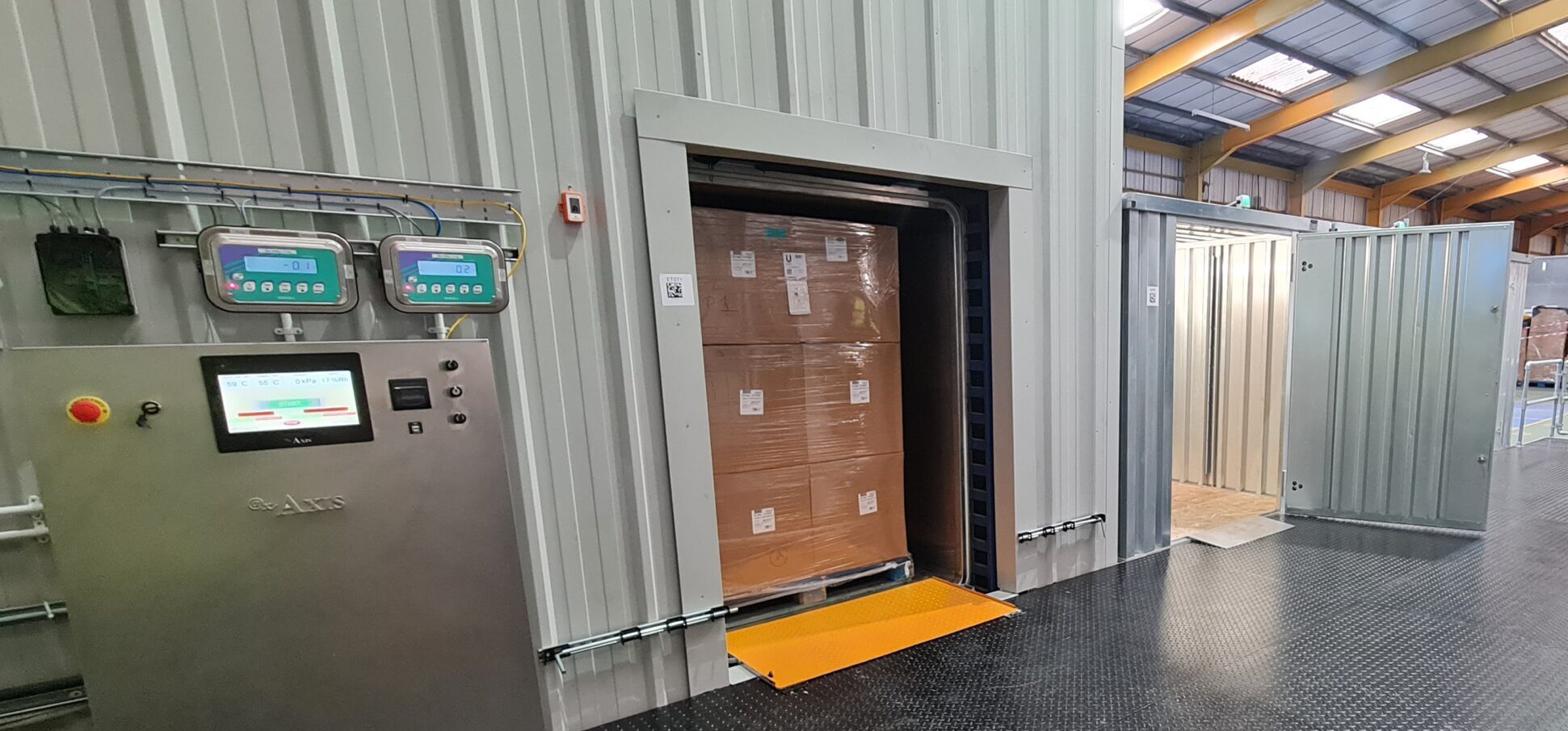

AXIS Industrial Ethylene Oxide Sterilisation Systems
The Axis industrial ethylene oxide steriliser range provide a cost effective and scalable solution for high volume, palletised sterilisation in manufacturing and large scale production environments.
Designed for controlled low temperature processing, these systems support the sterilisation of complex and heat sensitive materials with excellent material compatability.
Engineered for regulated production facilities, AXIS units deliver reliable, repeatable and validated sterilisation performance.
Key features include:
- High capacity pallet based processing for bulk production
- Controlled low temperature operation for heat sensitive products
- Automatic in hamber preconditioning and aeration
- Compatability with complex and packaged materials
T.E.S.T Ltd can supply, install and validate industrial ETO sterilisers in accordance with ISO 11135, supporting facilities operating within regulated environments.
The range meets EN1422 and EN11153:2014 standards and is designed for large scale production proceses requiring precise process control and integrated safety systems.
Designed for Large Scale Production
AXIS industrial sterilisers are fully automatic systems capable of processing a wide range of materials using ethylene oxide gas.
Key features include:
- Pallet-based loading for efficient bulk processing
- Integrated in chamber preconditioning and aeration
- Heavy-duty construction for long service life
The system is designed to simplify loading and unloading while maintaining strict process control and operator protection.
Operator Safety
Multiple integrated safety systems are incorporated to minimise exposure risk and ensure secure operation.
-
Inflatable silicone gasket creates a sealed chamber
-
Security jaws hold doors firmly in position
-
Aeration performed within the same chamber
-
Dedicated residual gas treatment system
-
Filtered air flushing and gas dilution to water waste
-
Internal trolley system removes the need for chamber entry
This approach ensures sterile items can be unloaded without gas residues and supports safe working practices.
Construction
The system comprises a stainless steel chamber, auxiliary framework and computerised control unit.
Chamber construction and utilities include:
-
306-grade stainless steel chamber
-
Vacuum system
-
Heat circulator
-
Humidifier and vapour generator
-
Multiple protection and alarm systems
Process control capabilities include:
-
Monitoring of temperature, vacuum pressure and humidity
-
Chemical dosing and sampling ports
-
Operation under negative or positive pressure
-
Maximum operating range of -85 kPa to +85 kPa with 0.1 kPa precision
-
Six direction heating system for uniform chamber temperature
Data recording using Solid-State memory
The system is controlled using a Panasonic PLC with a 5.7 inch colour touchscreen display.
The interface allows:
-
Real time cycle monitoring
-
Parameter trend graph display
-
Cycle configuration
-
Generation of sterilisation summaries and reports
Critical parameters including temperature, pressure and humidity are recorded in real time and stored in internal solid state memory.
-
RS 232 or isolated RS 485 interface
-
Multiple data display formats including bar graph and historical trend
-
Mini printer for on demand documentation
Our range of AXIS Industrial ETO sterilisers
- Capacity: 7 m³
- Pallet Capacity (EUR): 3.5
- Gas Consumption / cycle (approx): 4 kg
- Electrical Consumption / cycle (approx): 80 kWh
- Inner Dimensions (cm): 300 x 135 x 170
- Outer Dimensions (cm): 325 x 295 x 240
- Capacity: 10 m³
- Pallet Capacity (EUR): 5.5
- Gas Consumption / cycle (approx): 6 kg
- Electrical Consumption / cycle (approx): 160 kWh
- Inner Dimensions (cm): 450 x 135 x 170
- Outer Dimensions (cm): 495 x 295 x 240
- Capacity: 15 m³
- Pallet Capacity (EUR): 8.5
- Gas Consumption / cycle (approx): 9 kg
- Electrical Consumption / cycle (approx): 160 kWh
- Inner Dimensions (cm): 675 x 135 x 175
- Outer Dimensions (cm): 720 x 295 x 240
- Capacity: 20 m³
- Pallet Capacity (EUR): 11
- Gas Consumption / cycle (approx): 12 kg
- Electrical Consumption / cycle (approx): 240 kWh
- Inner Dimensions (cm): 900 x 135 x 170
- Outer Dimensions (cm): 945 x 295 x 240
- Capacity: 25 m³
- Pallet Capacity (EUR): 12.5
- Gas Consumption / cycle (approx): 15 kg
- Electrical Consumption / cycle (approx): 240 kWh
- Inner Dimensions (cm): 1000 x 145 x 170
- Outer Dimensions (cm): 1045 x 305 x 240
